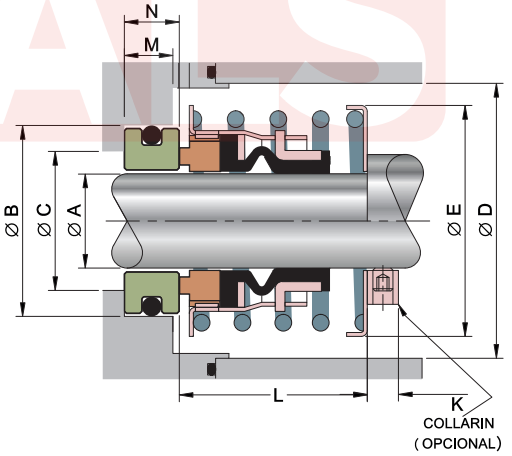

TS02 Single Spring Seals 1.125" to 2.000"

TS02 mechanical seal, used in domestic and industrial pumps, Rotary turbines and centrifuges in inch sizes. It works with oils and aqueous solutions, depending on the combination of materials.

MATERIALS

Rotary Face: Carbon Graphite, Silicon Carbide.

Seat: Ceramic, Silicon Carbide.

Bellows: NBR, FKM, EPDM.

Metallic Parts: Stainless Steel 304

OPERATION LIMITS

Shaft Speed: Max 3,600 R.P.M. (Depends on the diameter of the shaft).

Pressure: 250 PSI (17.6barg) (Depends on the combination of the material of the faces).

Temperature limits: -70 °F - 400 °F (-57 °C - 204 °C) (Depends on the material of the elastomer).
